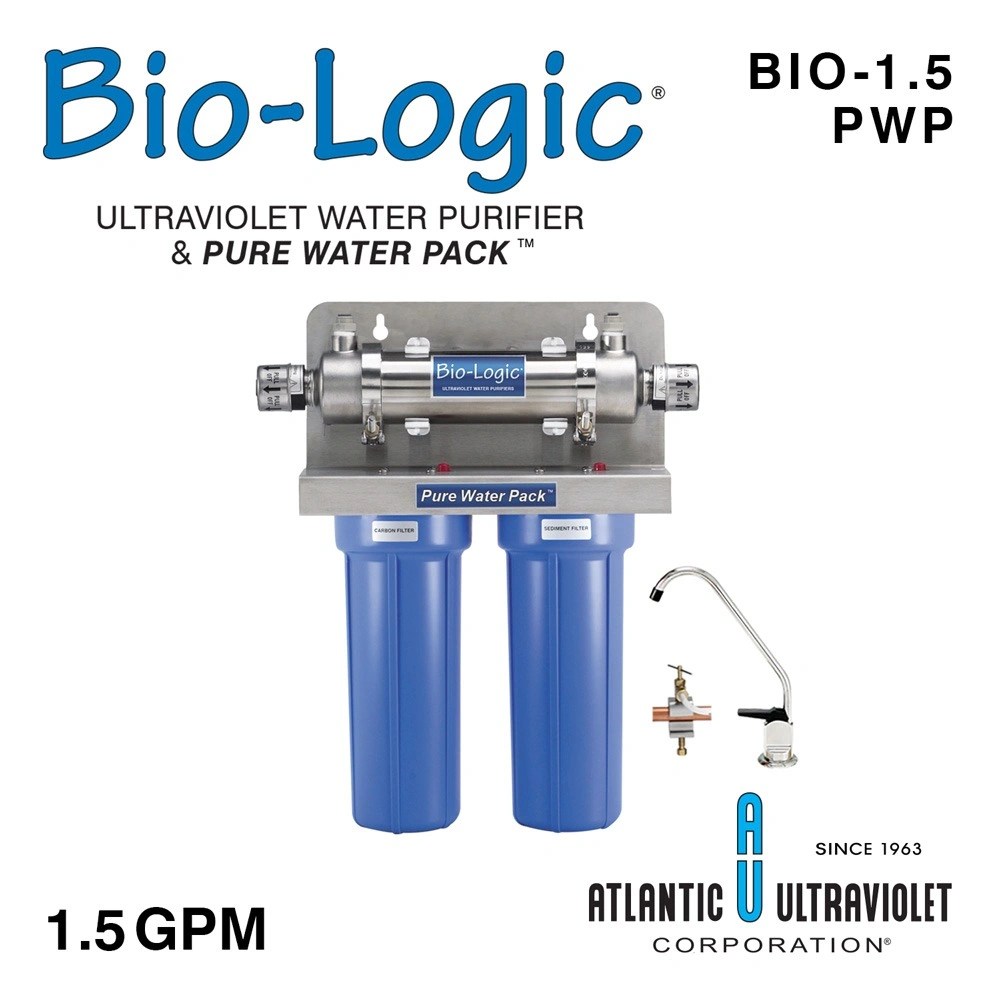

Home UV solutions

From $374.00

The ultimate last step in providing clean drinking water for your family.  UV systems zap unwanted germs and pesticides, turning them into molecules like CO2, Nitrogen, and Water.

All units

  • Are designed for point of use drinking water
  • Powerful STER-L-RAY Germicidal Ultraviolet Lamp(s)
  • Robust Quartz Protective Sleeve(s)
  • Minimum UV Dosing of 30 mJ/cm2
  • Convenient Horizontal design improves operational efficiency
  • Electropolished and Passivated to remove impurities
  • Easy to remove end caps – Changing lamps is easy
  • Ballast Health Monitor (BHM) is  an option

Three Series are available

Bio-Logic™      MINIPURE™       MIGHTYPURE™

  • Materials of Construction                                                 316 SS              304 SS                     316 SS
  • Lamp Out (LO) Indicator included                                    Yes                       Yes                          No
  • Lamp Out Audio indication                                                  Yes                   Yes                              No
  • Rotatable heads                                                                    Yes                    No                             No
  • Mounting Brackets                                                           Included             Included               Optional
  • Sight Port                                                                               No                      No                          Yes
  • Drain Plug                                                                               No                      No                          Yes



SKU: MASTER9998 Category: Brand:

Description

The ultimate last step in providing clean drinking water for your family.  Our UVC systems oxidize unwanted germs and pesticides.

Our systems are designed to attack and destroy the majority of bacteria, viruses and protozoa including

  • E. coli
  • Cryptosporidium
  • Giardia
  • Cholera
  • Salmonella
  • Dysentery bacilli
  • Hepatitis B
  • Mycobacterium tuberculosis
  • Streptococcus (strep throat)
  • Fungi
  • Algae
  • Most viruses

All units are equipped with

  • STER-L-RAY Germicidal Ultraviolet Lamp with 10,000 hr rated life
  • Protective Quartz Sleeve
  • Lamp out indicator – reassurance that your unit is still operating as expected
  • Audio alarm to indicate end of life
  • Convenient Horizontal Mounting arranement

These economical yet powerful units are available in the following flow rates

  • 1.0 GPM in 304 Stainless Steel
  • 1.5 GPM in 304 or 316 Stainless Steel
  • 3.0 GPM in 304 or 316 Stainless Steel
  • 6.0 GPM in 304 Stainless Steel
  • 9.0 GPM in 304 Stainless Steel



If your water is cloudy, pre filtering is necessary.  Removing unwanted particles from your water improves the quality of the water.  This unit works best when the following.  conditions are met.

  • Turbidity                                   < 1 NTU
  • Manganese                              < 0.05 mg/1
  • Total Suspended Solids.    <10 mg /1
  • pH:                                               6.5 – 9.5
  • Color:                                         None
  • Hardness                                  <6 Grains or 102.6 PPM or 102.6 mg/l
  • Iron                                             <0.3 mg/1
  • Tannins:                                   < 0.1 ppm or 0.1 mg/l

Additional information

Dimensions N/A
Flow (GPM)

1, 1½, 3, 6, 9, 12
Fill Time

1 sec to fill my cup 15 sec to fill a 6 quart pot- 6 GPM, 1 sec to fill my cup 8 sec to fill a 6 quart pot – 12 GPM, 1s to fill a cup 10s to fill 6-quart pot 9 GPM, 2 sec to fill my cup 30 sec to fill a 6 quart pot – 3 GPM, 3 sec to fill my cup 1 min to fill a 6 quart pot – 1.5 GPM, 4 sec to fill my cup 1.5 min to fill a 6 quart pot – 1 Gpm
BHM

Ballast Monitor, Ballast Monitor & Light Out Indicator, Light Out Indicator, N, None, Y
LO

N, Y
Con

½", ¼", ⅛", ⅜", ¾"
Thread

MNPT, FNPT
Voltage

115VAC US, 240 (Residential high voltage)
Material of Construction

Polished 316 Stainless Steel, Polished 304 Stainless Steel
Micron

None, 2µ, 5µ
